| Nominal impedance [ohm] |
8 |
|
|
| Voice coil resistance [ohm] |
5.8 |
|
|
| Nominal power [W] |
80 |
|
|
| Short term max power [W] |
- |
|
|
| Long term max power [W] |
- |
|
|
| Operating power [W] |
4 |
|
|
| Sensitivity [dB] |
90 |
|
|

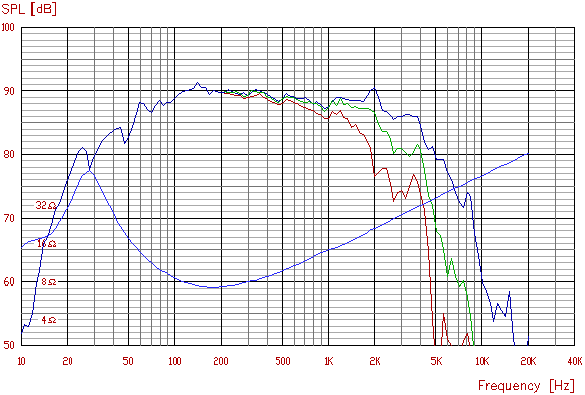

| Frequency range [Hz] |
25-3000 |
|
|
| Free air resonance [Hz] |
25 |
|
|
| Voice coil diameter [mm] |
32 |
|
|
| Voice coil height [mm] |
13 |
|
|
| Air gap height [mm] |
6 |
|
|
| Voice coil inductance [mH] |
1.7 |
|
|
| Eff. diaphragm Area [cm²] |
139 |
|
|
| Moving mass [g] |
23.5 |
|
|
| Magnet weight [g]/[oz] |
415/14.6 |
|
|
| Force factor [Bl] |
8.9 |
|
|
| VAS [l] |
140 |
|
|
| Qms |
2.20 |
|
|
| Qes |
0.27 |
|
|
| Qts |
0.24 |
|
|
|
| OD: |
215 mm |
|
CD: |
187 mm |
| FT: |
4.5 mm |
|
ID: |
76 mm |
| MD: |
92.3 mm |
|
HD: |
